Microcomputer Control Hydraulic Universal Tensile, Compression, Bending Testing Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | Spring testing machine,Torsion testing machine |
||
|---|---|---|---|

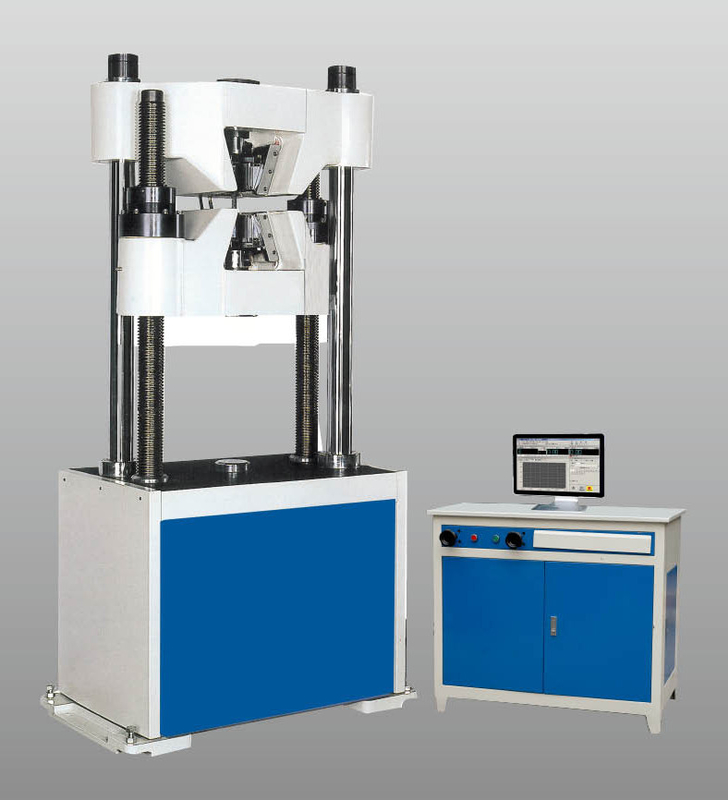

Microcomputer Control Hydraulic Universal Tensile, Compression, Bending Testing Machine
MEW-W series universal testing machine
Description:
MEW-W series microcomputer control hydraulic universal testing machine can be used for testing of mechanical properties such as tensile, compression, bending and shearing of metal and nonmetal materials, can achieve the closed loop control over testing force, displacement, deformation, stress and strain and can edit the control modes independently. With more than one hundred standard modes inside it, the machine can carry out the analysis on data fully according to the standard requirement and achieve print and internet transmission of the test results.
Specifications:
|
Main technical parameters |
MEW-W |
|||||||||
|
100D |
300D |
600D |
1000D |
1000A |
||||||
|
Maximum testing force (KN) |
100 |
300 |
600 |
1000 |
1000 |
|||||
|
Force measuring range |
2%~100% (or 1% - 100%) |
|||||||||
|
Relative error on indicated values of testing force |
Better than ±1% (≤±0.5%) of the indicated value |
|||||||||
|
Deformation precision |
±1% (or ±0.5%) |
|||||||||
|
Tensile space |
550mm |
600mm |
600mm |
600mm |
700mm |
|||||
|
Compression space |
≥500mm |
650mm |
||||||||
|
Clamping type |
Manual clamping |
Manual clamping/Automatic clamping |
||||||||
|
Clamping diameter of round specimen (mm) |
Φ6-Φ26 |
Φ13-Φ40 |
Φ13-Φ60 |
|||||||
|
Clamping thickness of flat specimen |
0-15mm |
0-30 mm |
0-40mm |
|||||||
|
Diameter of shearing specimen |
10 mm (Alternative) |
|||||||||
|
Dimension of upper and lower press board |
Φ120mm (Alternative 204×204 mm) |
|||||||||
|
Maximum distance between bending fulcrums |
Optional |
|||||||||
|
Power of oil pump motor |
1.5KW |
|||||||||
|
Power of beam up-down movement motor |
0.5KW |
|||||||||
|
Deformation testing device |
Extensometer |
|||||||||
|
Safety protective device |
Software protection and mechanical limit protection |
|||||||||
|
Net weight (Kg) |
1900 |
2100 |
2600 |
3500 |
4000 |
|||||
