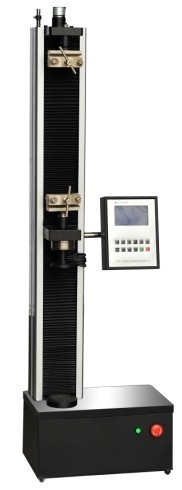

Digital Display Electronic Single Arm Universal Testing Machine Liquid Crystal Display Control

Main technical parameters

MDW-S

005

01

02

05

1

2.5

3

5

Structural form

Single-arm type

Maximum testing force (KN)

005

01

02

05

1

2

3

5

Operation mode

Liquid crystal display control

Force measuring range

2%-100% of the maximum testing force

Relative error on indicated values of testing force

Better than ±1%of the indicated value

Error on deformation display

±1% (or±0.5%)

Minimum resolution on the testing force

0.01N

Precision on beam displacement

±1%(±0.5%)

Deformation accuracy

Better than ±1% (or±0.5%)

Speed governing range

0.01-300 mm/min or 0.01-500 mm/min

Testing travel

Less than600 mm (800mm selected)

Testing space adjusting mechanism

Stepping motor or AC servo motor, synchronization with drive

Appearance

As per GB/T2611

Protection function

Overload protection, limit protection.

Power supply

220 V

Weight (approximate kg)

100

Operating conditions

Ambient temperature -35°C, humidity 20% - 80%

Clamp form

Suitable clamps will be configured according to the customer requirements. Special clamps can be customized for the customer.
