portable digital hardness tester , aluminium alloy hardness testing instrument
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Main Use: | Aluminum Alloy; Copper Alloy | Measuring Range: | 0~20HW |
|---|---|---|---|
| Accurate Measuring Range: | 5~18HW | Accuracy: | 0.5HW |
| Resolution: | 0.1HW | Characteristic: | Digital And Portable |
| Colour: | Silver | ||
| High Light: | Hardness testing equipment,hardness tester portable |
||
portable digital hardness tester , aluminium alloy hardness testing instrument
Description:

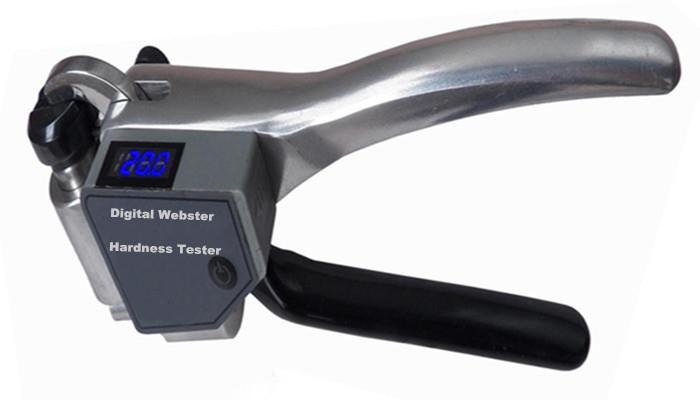

MSW-20 digital webster hardness tester:
It is used to test aluminum profiles on the production site and application.
Applications:
It can perform on-site hardness test on soft metals
In accordance with American Standard ANSI/ASTM B647-87.
Used to check the result of heat treatment
Determine if the mechanical performace of the workpiece .
Suitable for testing the hardness of aluminium profiles,
tubings,sheets and other shapes.
It can quickly measure the hardness of aluminum alloy material,
such as aluminum, aluminum sheet,aluminum etc.
Applicable to the production,the sales site and
construction site of product rapid nondestructive hardness testing.
Specifications:
Mainly used to measure the hardness of aluminum alloy(1100~7075series)
Measuring range 0~20HW(Aluminum and aluminum alloy 25~110HRE)
(Copper alloy60~90HRF)
Accurate measuring range 5~18HW
Accuracy 0.5HW
Resolution 0.1HW
Feature:
It could separate detection and display.
It can avoid the blocking out of display device
It could not read value in the detection.
Standard Packages:
1 Tester
1 Charger
2 Five Lithium Batteries
2 Seven Lithium Batteries
1 Operating Manual
1 Certificate
1 Warranty Card

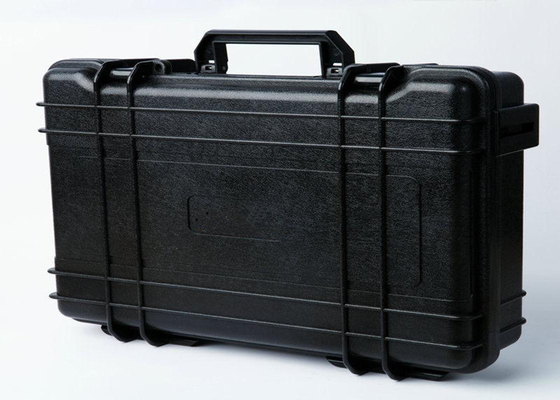

1 Carrying Case
Optional Accessories:
Standard hardness blocks
Spare indenter
Calibration wrench
|
Hardness Conversion Table
|
|||||
|
HW |
HRE |
HRF |
HB |
934-1 |
HV |
|
20.0 |
110 |
|
168.7 |
|
179.5 |
|
19.0 |
105.7 |
|
152 |
97 |
161.3 |
|
18.0 |
101.4 |
98.5 |
132 |
91 |
139.4 |
|
17.5 |
99.2 |
|
122 |
88 |
129.6 |
|
17.0 |
97.1 |
95 |
115.8 |
86 |
121.5 |
|
16.5 |
94.9 |
|
109.5 |
84 |
114.8 |
|
16.0 |
92.8 |
91 |
104.2 |
82 |
109.1 |
|
15.5 |
90.6 |
|
99.4 |
81 |
103.7 |
|
15.0 |
88.5 |
87.2 |
95.4 |
79 |
99.4 |
|
14.5 |
86.3 |
|
91.7 |
77.5 |
95.4 |
|
14.0 |
84.2 |
83 |
88.3 |
76 |
91.6 |
|
13.5 |
82 |
|
85 |
74.5 |
88.1 |
|
13.0 |
79.9 |
78.8 |
82.2 |
73 |
85 |
|
12.5 |
77.7 |
|
79.5 |
72 |
82.1 |
|
12.0 |
75.6 |
74.6 |
77 |
71.5 |
79.3 |
|
11.5 |
73.4 |
|
74.4 |
69 |
76.5 |
|
11.0 |
71.3 |
70.3 |
72.2 |
68 |
74 |
|
10.5 |
69.1 |
|
70 |
67 |
71.7 |
|
10.0 |
67 |
66.1 |
68 |
66 |
69.5 |
|
9.5 |
64.8 |
|
66 |
64.5 |
67.3 |
|
9.0 |
62.7 |
61.8 |
64.1 |
63.5 |
65.2 |
|
8.5 |
60.5 |
|
62.3 |
62.5 |
63.2 |
|
8.0 |
58.4 |
57.6 |
60.5 |
61.5 |
61 |
|
7.5 |
56.2 |
|
58.8 |
60.5 |
59.3 |
|
7.0 |
54.1 |
53.3 |
57.2 |
59.5 |
58 |
|
6.5 |
51.9 |
|
55.5 |
58.5 |
55.8 |
|
6.0 |
49.8 |
50 |
|
57 |
|
|
5.0 |
45.5 |
|
|
56 |
|
|
4.0 |
41.2 |
|
|
54 |
|
|
3.0 |
36.9 |
|
|
52 |
|
|
2.0 |
32.6 |
|
|
50 |
|
|
1.0 |
28.3 |
|
|
|
|
