300kN Automatic Cement Pressure / Bending Tester, Computer Control Universal Testing Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | Spring testing machine,Torsion testing machine |
||
|---|---|---|---|

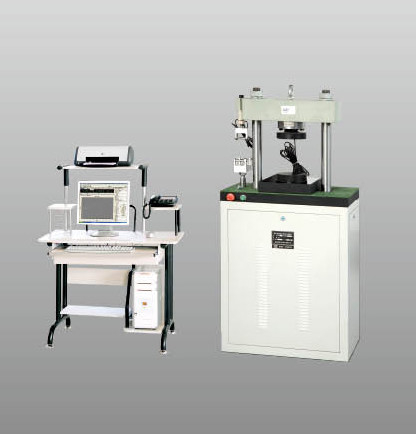

300kN Automatic Cement Pressure / Bending Tester, Computer Control Universal Testing Machine
MAW Automatic Cement Pressure (Bending) Testing Machine
Description:
In line with GB/T16491-2008, GB10238-2005, JJG139-1999 and GB/T17671-1999, this testing machine is mainly used for the compressive strength or bending tests of ordinary cement or oil well cement.
The D-type avails high-precision governing system and motor to drive the precise ball screw-rod to load. It has low noise, but high reliability. The no hydraulic oil maintenance enables its easy and convenient operation.
The B-type uses hydraulic drive. It has low noise and smooth operation.
The liquid crystal chip or computer control, and special software fully realize the constant stress control.
Bending: a unique design concept combines the concrete compressive and flexural testing together, which makes it easier to use.
Specifications:
|
Model |
MAW-300S |
MAW-300B |
MAW-300D |
|
Max. test force (kN) |
300kN |
300kN ; 10KN |
|
|
Test force measurement range & test precision |
6-300KN; Better than ± 1% |
compressive:6-300kN;Bending 0.1-10KN better than ±1% |
|
|
Adjustment range of test force speed |
1-10kN/s; settable |
||
|
Control range of test speed |
0.01-50mm/min |
||
|
Test implementation standard |
GB/T17671-1999 or GB/T10238—2005 |
||
|
maximum distance between the upper and lower plates |
200mm |
||
|
size of upper and lower plates |
Diameter: 140mm |
||
|
Test method |
One-piece test; consecutive completion of 6 pieces in one set |
||
|
Main engine dimension(L×W×D) |
830×530×1500mm |
||
|
Weight |
350kg |
||
|
Power |
220V;1.5kW |
||
|
Note: This parameter list is only for information and is subject to change without notice. The real objects prevail for the products of our company. |
|||
