Microcomputer Control Electronic Universal Testing Machine High Configuration Gate
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | Spring testing machine,Torsion testing machine |
||
|---|---|---|---|

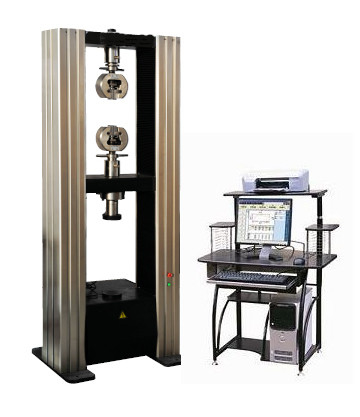

Microcomputer Control Electronic Universal Testing Machine High Configuration Gate
MDW-E Microcomputer control Electronic Universal Testing Machine(High Configuration Gate type)
Description:
Series MDW-E Microcomputer control electronic universal testing machine is applicable for tensile tests of material like rubber, plastic, textile, waterproofing material, cable, network wire, metal wire, metal rod, metal plate and others. With attaching tools, it can also do compression and bending tests.
Applications:
Auto-calibration: The system is able to automatically achieve the calibration of standards of displayed values.
The big liquid crystal displayer displays the real-time test force, peak value, displacement, speed, status, etc. throughout the trial process.
Breaking judgment: when the specimen is broken, move the beam to automatically stop the test.
Limit protection: It has mechanical and control limit protections
Specifications:
|
Main technical parameters |
MDW-E |
|||||||||
|
10 |
20 |
50 |
100 |
200 |
300 |
|||||
|
Structural form |
floor type |
|||||||||
|
Maximum testing force (KN) |
10 |
20 |
50 |
100 |
200 |
300 |
||||
|
Operation mode |
Microcomputer control (Chinese software operation) |
|||||||||
|
Force measuring range |
2%-100% of the maximum testing force (0.4%-100%) |
|||||||||
|
Relative error on indicated values of testing force |
Better than ±1%of the indicated value ( or±0.5% special selection) |
|||||||||
|
Error on deformation display |
±1% (or±0.5% ) |
|||||||||
|
Minimum resolution on the testing force |
0.01N |
|||||||||
|
Precision on beam displacement |
±1% (±0.5% ) |
|||||||||
|
Deformation accuracy |
Better than ±1% (±0.5% optional) |
|||||||||
|
Speed governing range |
0.01-200mm |
|||||||||
|
Testing travel |
Less than 700 mm (it can be customized According to the customer needs) |
|||||||||
|
Testing space adjusting mechanism |
servo motor, synchronization with drive |
|||||||||
|
Appearance |
As per GB/T2611 |
|||||||||
|
Protection function |
Overload protection, limit protection. |
|||||||||
|
Power supply |
220 V |
|||||||||
|
Weight (approximate kg) |
400 |
500 |
600 |
1300 |
2000 |
|||||
|
Operating conditions |
Ambient temperature -35°C, humidity 20% - 80% |
|||||||||
|
Clamp form |
Suitable clamps will be configured according to the customer requirements. Special clamps can be customized for the customer. |
|||||||||
