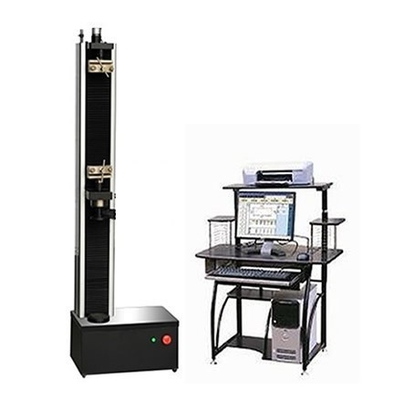

Common Configuration Single Arm Electronic Universal Testing Machine For Rubber, Plastic, Textile, Cable

Main technical parameters

MDW-

05

1

2

5

Structural form

Single-arm type

Maximum testing force (KN)

05

1

2

5

Operation mode

Microcomputer control

Force measuring range

2%-100% of the maximum testing force

Relative error on indicated values

of testing force

Better than ±1%of the indicated value

Error on deformation display

±1% (or±0.5%)

Minimum resolution on the testing force

0.01N

Precision on beam displacement

±1%(±0.5%)

±1% (±0.5%)

Deformation accuracy

Better than ±1% (±0.5%)

Speed governing range

0.01-500mm/min

Testing travel

Less than 600 mm (800mm selected)

Testing space adjusting mechanism

Stepping motor or AC servo motor, synchronization with drive

As per GB/T2611

Protection function

Overload protection, limit protection.

Power supply

220 V

Weight (approximate kg)

120

Operating conditions

Ambient temperature -35°C, humidity 20% - 80%

Clamp form

Suitable clamps will be configured according to the customer requirements. Special

clamps can be customized for the customer.
