Surface Roughness Measuring NDT Tester, Portable Digital Surface Roughness Testing Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | ndt instrument,non destructive testing equipment |
||
|---|---|---|---|
Surface Roughness Measuring NDT Tester, Portable Digital Surface Roughness Testing Machine

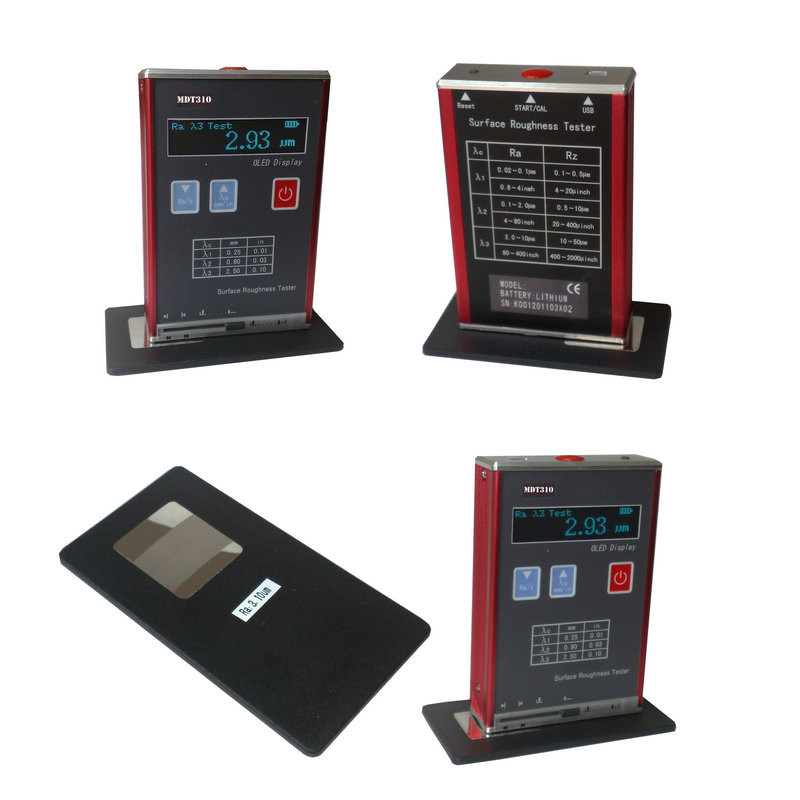

MDT310 surfaces roughness tester
Description:
The product is a new portable Surface Roughness Tester developed by our company. Featuring high accuracy,wide range of application, simple operation and stable performance. It is widely applicable in testing surfaces of all kinds of metals and non-metals. Integrating pick up with the main unit, it is a hand-held set, especially suitable for use on production sites.
Specifications:
|
Testing parameters(µm ) |
Ra,Rz,Rq,Rt |
|
Stroke length(mm) |
6 |
|
Sample length(mm) |
0.25 ,0.80 ,2.50 |
|
Evaluation length(mm) |
1.25 ,4.0 |
|
Measuring range(µm ) |
Ra: 0.05 ~ 10.0 Rz: 0.1 ~ 50 |
|
Error |
±15% |
|
Variability |
＜12% |
|
Transducer contacting pin round diameter and angle |
Contacting pin round diameter:10 µm±1 µm Degree: |
|
Battery |
3.7V Li |
|
Size |
106 mm×70 mm×24 mm |
|
Weight |
200g |
|
Working conditions |
Temperature: -20℃～40℃ Relative humidity: < 90% No shake and corrosivity around |

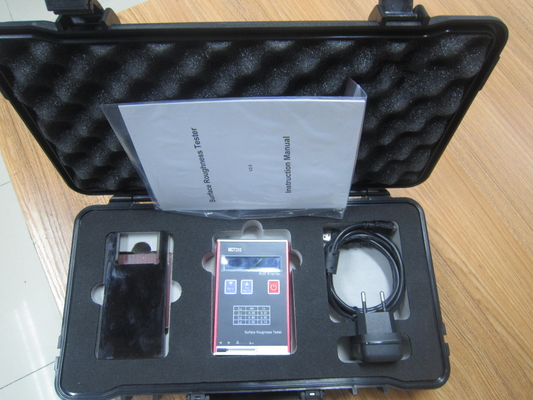

Standard Package:
|
Name |
Qty |
|
MDT310 main unit |
1 |
|
Roughness specimen |
1 |
|
AC adapter |
1 |
