Portable Hardness NDT Tester Heavy Work Piece Hardness Testing Machine MH100

Portable Hardness NDT Tester, Heavy Work Piece Hardness Testing Machine MH100

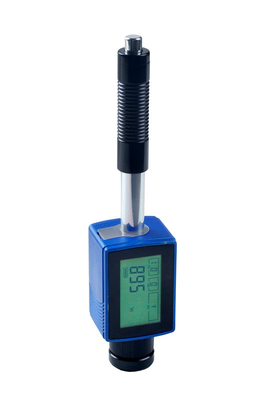

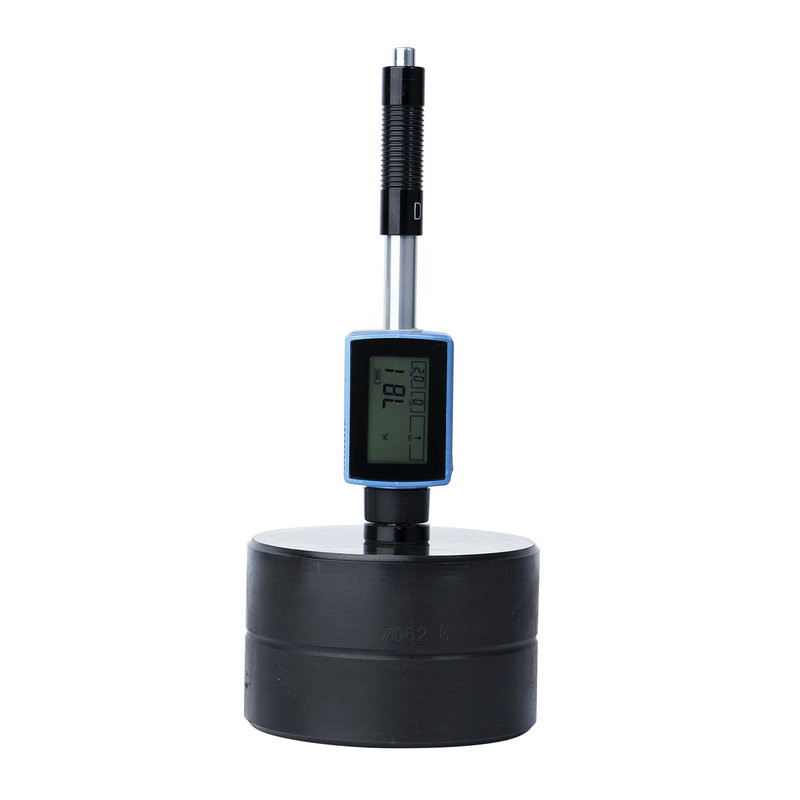

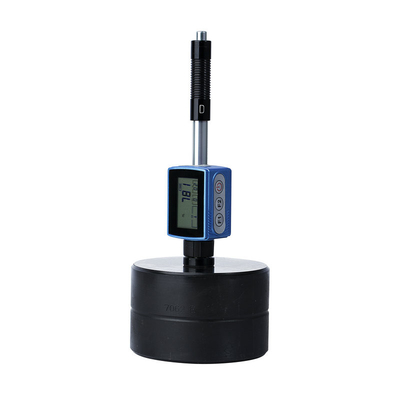

Large display Pentype Hardness Tester MH100

Applications:

l       Die cavity of molds

l       Bearings and other parts

l       Failure analysis of pressure vessel, steam generator and other equipment

l       Heavy work piece

l       The installed machinery and permanently assembled parts.

l       Testing surface of a small hollow space

l       Material identification in the warehouse of metallic materials

l       Rapid testing in large range and multi-measuring areas for large-scale work piece

Specifications:

*Measuring Range (170-960)HLD, (17-68.5)HRC, (19-651)HB, (80-976)HV, (30-100)HS, (59-85)HRA, (13 -100)HRB
*Measuring Direction  Supprt 0~360º
*Hardness Scales HL,HB, HRB, HRC,HRA,HV, HS
*Display HD dox matrix LCD and LED backlight
*Data Memory Max. 500 groups(relative to impact device 32~1)
*Working Power 3.6V(Integrated Lithium battery and rechargable circuit

*Continous Working Period about 200 hours (without using backlight)
*Communciation Interface USB1.1 port

Competitive Advantage:

1.    Wide measuring range. Based on the principle of Leeb hardness testing theory. It can measure the

       Leeb hardness of all metallic materials.

2.   Large screen LCD, showing all functions and parameters. With EL background light.

3.  Seven impact devices are available for special application. Automatically identify the type of impact

     devices.

4.  Test at any angle, even upside down.

5.   Direct display of hardness scales HRB, HRC, HV, HB, HS, HL

6.   Large memory could store 100 groups (Relative to average times 32~1 ) information including single

      measured value, mean value, impact direction, impact times, material and hardness scale etc.

7.   Battery information showing the rest capacity of the battery.

8.   User calibration function.

9.   Software to connect to PC via RS232 port. Micro printer support.

10. Compact plastic case,suitable for use under poor working conditions

11.Continuous working period of no less than 100 hours with two alkaline batteries(AA size), Auto power off

     to save energy.

11.  Outline dimensions 150mm×74mm×32 mm

12.   Weight 245g

Standard Package

Differences between Mitech portable Leeb hardness tester
