HBRV-187.5 Motorized Brinell Hardness Tester, Rockwell / Vickers Durometer For Steel

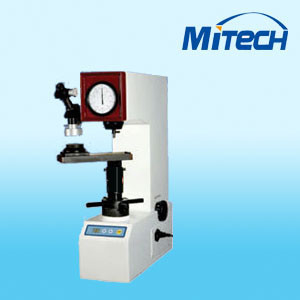

Large Image : HBRV-187.5 Motorized Brinell Hardness Tester, Rockwell / Vickers Durometer For Steel Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	MITECH
Model Number:	HBRV-187.5

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export carton box
Delivery Time:	Goods in stock, could send out within three days
Payment Terms:	100% T/T, Paypal or Wester Union
Supply Ability:	500 sets/month

Contact Now

Detailed Product Description

High Light:

Micro Vickers hardness tester

brinell hardness test machine

HBRV-187.5 Motorized Brinell Hardness Tester, Rockwell / Vickers Durometer For Steel

HBRV-187.5 Motorized Brinell Rockwell & Vickers Hardness Tester

Description:

HBRV-187.5 Motorized Brinell Rockwell & Vickers Hardness Tester with Brinell, Rockwell and Vickers, 3 kinds of measuring method, and as well as 7 steps testing force is able to meet the needs of many kinds of hardness test requirements for users. Testing force can be loaded, kept and unloaded automatically. Therefore the tester is easy to use and widely welcomed by many users.

Applications:

Hardened and surface hardened steel, hard alloy steel, casting parts, non-ferrous metals, various kinds of hardening and tempering steel and tempered steel, carburized steel sheet, soft metals, surface heat treating and chemical treating materials, etc.

Specifications:

Rockwell Scales Testing Force	HRA, HRB, HRC, HRD,HRE, HRF,HRG,HRH,HRK 60Kg (588N),100Kg (980.7N),,150Kg(1471N)
Vickers Scales Testing Force	HBW2.5/31.25, HBW2.5/62.5,HBW5/62.5, HBW2.5/187.5 31.25Kg (306.5N), 612.9N(62.5Kg),1839N(187.5Kg)
Vickers Scales Testing Force	HV30, HV100 30Kg(294.2N),100Kg (980.7N)
Indication of Hardness Value	(Rockwell):(Dial ) (Brinell and Vickers): (Measuring Microscope)
Amplification of Microscope	37.5X,,75X
Duration Time	2 ~ 60S
Max. Height of Specimen	Rockwell: 170mm Brinell and Vickers: 140mm
Overall Dimension	520X240X700MM (LXWXH)
Net Weight	80 Kg
Power Supply	AC220V + 5%, 50~60 Hz
Carried Standard	GB/T230.2(Rockwell),GB/T231.2(Brinell) ,GB/T4340.2 (Vickers) JJG112 (Rockwell),JJG150( Brinell)
