Digital Table Hardness Tester, Hardness Test Machine / Equipment For Big Grain Metal HBS-3000

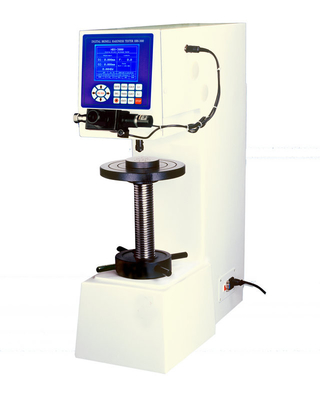

Large Image : Digital Table Hardness Tester, Hardness Test Machine / Equipment For Big Grain Metal HBS-3000 Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	MITECH
Model Number:	HBS-3000

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export carton box
Delivery Time:	Goods in stock, could send out within three days
Payment Terms:	100% T/T, Paypal or Wester Union
Supply Ability:	500 sets/month

Contact Now

Detailed Product Description

High Light:

Hardness testing equipment

brinell hardness test machine

Digital Table Hardness Tester, Hardness Test Machine / Equipment For Big Grain Metal HBS-3000

HBS-3000 Digital Table Hardness Tester

Applications:

Brinell hardness test which adopts heavy testing force and shows large indentation is apply to measure hardness value for big grain metal materials such as casting parts, nonferrous metals and alloy, various tempered steel, hardening and tempering steel, specially for soft metal such as pure aluminum, lead, tin, etc.

Specifications:

Brinell Scale	HBW2.5/62.5,HBW2.5/187.5,HBW5/62.5,HBW5/125,HBW5/250, HBW5/750,HBW10/100,HBW10/250,HBW10/500,HBW10/1000,HBW10/1500,HBW10/3000
Testing Force	62.5kgf(612.9N),100kgf (980.7N),125kgf 1226N),187.5kgf (1839N),250kgf (2452N),500kgf (4903N),750kgf (7355N),1000kgf (9807N),1500kgf (14710N),3000kgf (29420N)
Min Measuring Unit	0.005mm
Magnification of Microscope	20X
Dutation Time	5~60 sec
Overall Dimension	550×210×750mm(L×W×H)
Net Weight	125kg
Max Height of Speciment	230mm
Max depth of speciments	135mm
Power Supply	AC220V±5%,50~60Hz
Carried Standard	GB/T231(1.2) Chinese Standard
Standard Accessories	A set of Measuring Microscope, Diameter: 2.5, 5 and 10mm Hard Alloy Ball Indenters, 3 pcs Standard Hardness Blocks, Large Testing Table, Medium Testing Table, “V”- shaped Testing Table, Power Cable
