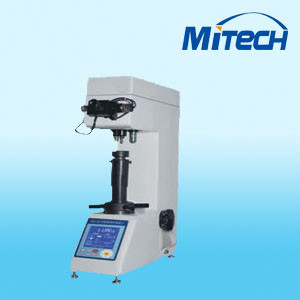

Automatically Digital Micro Vickers Hardness Tester, Hardness Testing Equipment HVS-30

Large Image : Automatically Digital Micro Vickers Hardness Tester, Hardness Testing Equipment HVS-30 Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	MITECH
Model Number:	HVS-30

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export carton box
Delivery Time:	Goods in stock, could send out within three days
Payment Terms:	100% T/T, Paypal or Wester Union
Supply Ability:	500 sets/month

Contact Now

Detailed Product Description

High Light:

Hardness testing equipment

hardness tester portable

Automatically Digital Micro Vickers Hardness Tester, Hardness Testing Equipment HVS-30

HVS-30 Digital Micro Vickers Hardness Tester

Description:

HVS-5 HVS-10 HVS-30 HVS-50 Digital Micro Vickers Hardness Tester adopts large LCD screen to display and menu type structure to choice hardness scales HV or HK, store testing results and data procession automatically, as well as output by printer. By means of interface of RS-232, the instrument can be linked with computer. It can be assembled a device to exchange hardness values among scales(Z).

Applications:

Heat treated layer, carbonized layer, hardened hard layers, superficial coating, steels, non-ferrous metal, micro and thin shaped components.

Specifications:

TYPE PROJECT	HVS-5	HVS-10	HVS-30	HVS-50
Testing Force	2.94N(0.3Kgf), 4.9N(0.5Kgf), 9.80N(1Kgf), 19.6N(2.0Kgf), 29.4N(3.0Kgf), 49.0N(5.0Kgf)	2.94N(0.3Kgf), 4.9N(0.5Kgf), 9.80N(1Kgf), 29.4N(3Kgf), 49.0N(5Kgf), 98.0N(10Kgf)	9.8N(1.0Kgf), 29.4N(3Kgf), 49.0N(5.0Kgf), 98N(10Kgf), 196N(20Kgf), 294N(30Kgf)	9.8N(1.0Kgf), 49.0N(5.0Kgf), 98N(10Kgf), 196N(20Kgf), 294N(30Kgf), 490N(50Kgf)
Min Measuring Unit	0.0625μm	0.0625μm	0.125μm	0.125μm
Magnification of Microscope	100X(For Observation) 200X(For Measurement)		100X(For Observation) 100X(For Measurement)
Data Output	(Inside Printer and 232 Interface
Loading Control	Automatically (load, keep, unload)
Net Weight	35kg
Max Height of Speciment	160mm
Max depth of speciments	135mm
Power Supply	AC220V±5%,50~60Hz
Carried Standard	GB/T4340(1.2) Chinese Standard
Standard Accessories	Lens20x.10x,Vickers indenter,Digital Measuring eyepiece 10x,Large Testing Table , Medium Testing Table and V shaped Testing Table,Power Cable		Lens10x,Vickers indenter,Digital Measuring eyepiece 10x,Large Testing Table , Medium Testing Table and V shaped Testing Table,Power Cable
