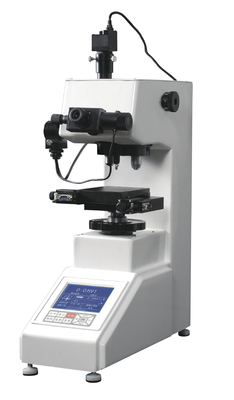

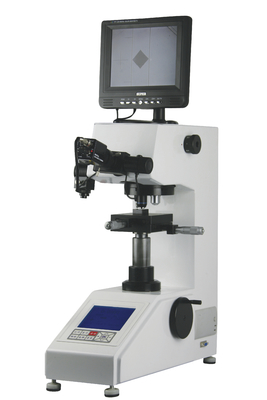

Digital Micro Vickers Hardness Tester For Micro And Thin Shaped Components Testing HV-1000Z

large.img.alt
small.img.alt small.img.alt

Large Image :  Digital Micro Vickers Hardness Tester For Micro And Thin Shaped Components Testing HV-1000Z Get Best Price

Product Details:
Place of Origin: China
Brand Name: MITECH
Model Number: HV-1000Z
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Standard export carton box
Delivery Time: Goods in stock, could send out within three days
Payment Terms: 100% T/T, Paypal or Wester Union
Supply Ability: 500 sets/month
Contact Now
Detailed Product Description
High Light:

Hardness testing equipment

,

hardness tester portable

Digital Micro Vickers Hardness Tester For Micro And Thin Shaped Components Testing HV-1000Z



HV-1000Z Digital Micro Vickers Hardness Tester

Description:

HV-1000Z Digital Micro Vickers Hardness Tester adopts large LCD screen to display and menu type structure to choice hardness scales HV or HK, exchange hardness values among scales, store testing results and data procession automatically, as well as output by printer. By means of interface of RS-232, the instrument can be linked with computer.



Applications:

Heat treated layer, carbonized layer, hardened hard layers, superficial coating, steels, non-ferrous metal, micro and thin shaped components



Specifications:

Testing Force

10g (0.098N),25g (0.245N),50g (0.49N),100g (0.98N ),

200g (1.96N),300g (2.94N),500g (4.9N),1000g (9.8N)

Min Measuring Unit

0.5μm

Magnification of Microscope

100X(For Observation )400X( For Measurement)

Loading Method

Automatically (load, keep, unload)

Overall Dimension

405×290×480mm ( L X W X H)

 Net Weight

25kg

Max Height of Specimen

100mm

Power Supply

AC220V±5%,50~60Hz

Carried Standard

GB/T4340.2GB/T4340.2 ,JJG151
