Manual Superficial Rockwell Hardness Tester, NDT Hardness Test Machine HRM-45

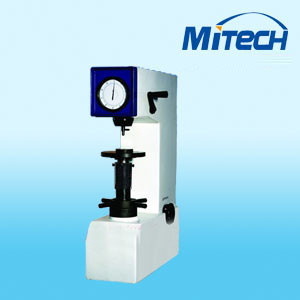

Large Image : Manual Superficial Rockwell Hardness Tester, NDT Hardness Test Machine HRM-45 Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	MITECH
Model Number:	HRM-45

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export carton box
Delivery Time:	Goods in stock, could send out within three days
Payment Terms:	100% T/T, Paypal or Wester Union
Supply Ability:	500 sets/month

Contact Now

Detailed Product Description

High Light:

hardness test machine

hardness tester portable

Manual Superficial Rockwell Hardness Tester, NDT Hardness Test Machine HRM-45

HRM-45 Manual Superficial Rockwell Hardness Tester

Description:

HRM-45 Manual Superficial Rockwell Hardness Tester adopts mechanical and manual testing method, without electrical device. With simple appearance, it uses as popular type Rockwell Hardness testing instrument.

Applications:

Surface hardened steel, copper, aluminum alloy sheet, hard alloy steel, zinc layers, chrome layers, tin layers, surface heat treating and chemical treating materials, etc.

Specifications:

Rockwell Scales	HR15N, HR30N, HR45N, HR15T, HR30T, HR45T
Initial Testing Force	3kgf (29.42N)
All Testing Force	15kgf (147.1N), 30kgf (294.2N), 45kgf (441.3N)
Indication of Hardness Value	Dial
Overall Dimension	520×240×700mm(L×W×H)
Net Weight	80kg
Max Height of Speciment	170mm
Max depth of speciments	165mm
Carried Standard	GB/T230(1.2) Chinese Standard
Standard Accessories	Diamond Rockwell Indenter, Diameter 1.5875mm Hard Alloy Steel Ball Indenter, Large Testing Table , Medium Testing Table and Vshaped Testing Table, HRC and HRB Hardness Blocks.
