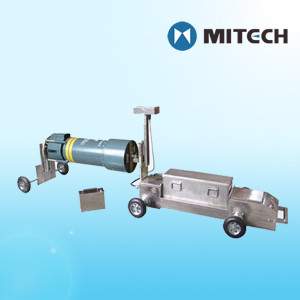

Magnetic Medium Control X-Ray Pipeline Crawler For φ323 - φ630 mm , φ529 - φ1200 mm Pipeline

Large Image : Magnetic Medium Control X-Ray Pipeline Crawler For φ323 - φ630 mm , φ529 - φ1200 mm Pipeline Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	MITECH
Model Number:	MZY series

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export carton box
Delivery Time:	Goods in stock, could send out within three days
Payment Terms:	100% T/T, Paypal or Wester Union
Supply Ability:	500 sets/month

Contact Now

Detailed Product Description

High Light:

x ray flaw detector

Magnetic flaw detector

Magnetic Medium Control X-Ray Pipeline Crawler For φ323 - φ630 mm , φ529 - φ1200 mm Pipeline

Magnetic Medium control X-ray pipeline crawler MZY series

Description:

- This is new model with advanced technology, and updated principle

- The highlight is magnetic control, which is more convenient than video control (must be operated on the opening of pipeline), and better precision of locating. The efficiency is improved a lot, and the operation will be easier.

- Smaller, lighter, and easy to disassemble and install.

- Easy to operation, stable and reliable.

- Automatically move backward if low battery power, meeting water, meeting obstacles, over current, lack of current, over-temperature. Alarm as well.

- Automatically move back if no operation over forty minutes

Specifications:

Model	Model MZY-3C	Model MZY-10C	Note
Pipeline Diameter(mm)	φ323~φ630	φ529~1200
Crawler Dimensions(mm)	1480×220×170	1440×240×185
Control Device Dim.(mm)	192×97×143	192×97×143
Weight(kg)	65	75
Crawling Speed(m/min)	16	16
Locating Tolerance(mm)	±5	±5
Drive Type	Two Wheels Driven	Four Wheels Driven
Climbing angle	20°	30°
Swerving Radii	≥10D	≥7D
Ray Radiation Angle	360°×40°	360°×40°
Generator Dimension(mm)	φ155×750		100KV tube
	φ195×780		160KV tube
	φ230×760	φ230×760	200KV tube
		φ230×700	250KV tube
		φ280×850	300KV tube
Working Temperature	-20℃~60℃	-20℃~60℃
Relative Humidity	90％	90％

Standard Package:

No.	Name	Quantity
1	Crawler dolly	1 set
2	Control system	1 set(magnetic)
3	X-ray generator	1 set
4	batteries	1 set(125V)
5	Charger	1 set(125V)
6	Charger for control system	1 set
7	bracket plate	2 pcs(on front and back)
8	Sliding plate	2 pcs(on front and back)
9	Spindle housing	1 set
10	Cable	1 set
