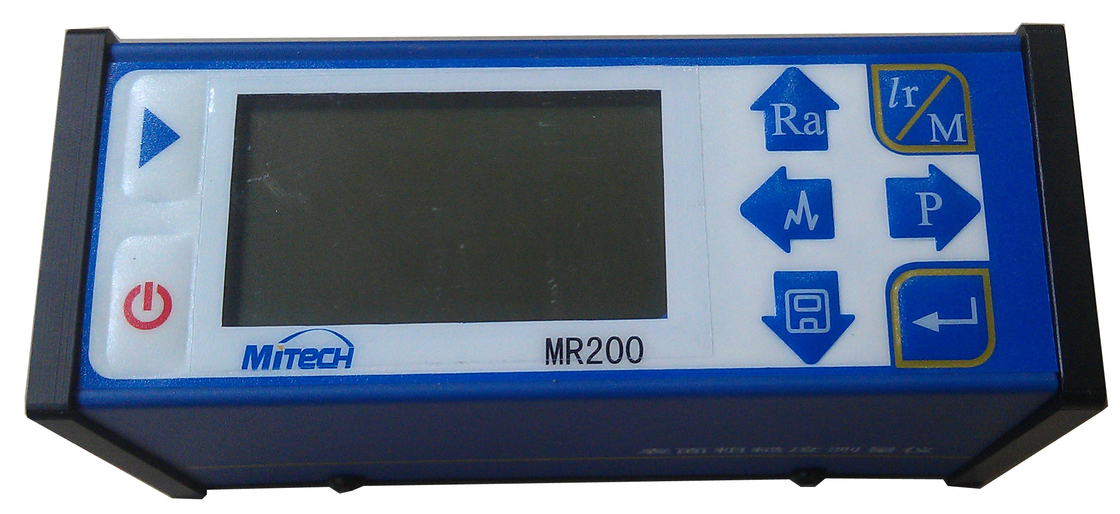

Mitech MR200 Protable Surface Roughness Measurement Instrument High Precious
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Measuring Range: | 160um | Filter: | RC,PC-RC,Gauss,D-P |
|---|---|---|---|
| Sampling Length(lr): | 0.25,0.8,2.5mm | Assessment Length: | Ln=lr×n, N=1~5 |
| Parameters: | 15 | L*W*H: | 119*47*65mm |
| Mass: | Approximately 380g | ||
| High Light: | surface roughness testers,surface roughness instrument |
||
High Precious Surface Roughness Tester, Surfaces Measure Instrument
MR200 high precious surfaces roughness measure instrument
Description:
The MR200 surfaces roughness measure instrument is suitable for shop floor use and mobile measure to need of a small handheld instrument, it operation simple, function overall, measure fast, accuracy stability, take convenience.The MR200 is capable of evaluating surface textures with a variety of parameters according to various national standards and international standard.The measurement results are displayed digitall/graphically on the LCD,and output to the printer.
Specifications:
|
Name |
Content |
|
|
Measuring range |
Z Axis(Vertical) |
160μm |
|
X Axis(Horizontal) |
17.5mm |
|
|
Resolution |
Z Axis(Vertical) |
0．01μm/±20μm |
|
0．02μm/±40μm |
||
|
0．04μm/±80μm |
||
|
Measurement item |
Parameters |
Ra,Rq,Rz,Rt,Rp,Rv,RS,RSm,Rz(JIS),Ry(JIS) ,RSk,R3z,Rmax,Rpc,Rmr； |
|
Standard |
ISO,ANSI,DIN,JIS |
|
|
Graphic |
Roughness profile,Material ratio curve,Direct profile |
|
|
Filter |
RC,PC-RC,Gauss,D-P |
|
|
Sampling length (lr) |
0.25,0.8,2.5mm |
|
|
Assessment length ln) |
Ln= lr×n n=1~5 |
|
|
Pickup |
principle |
Differential inductance |
|
Stylus |
Natural Diamond, 90B cone angle, 5μm tip radius |
|
|
Force |
<4mN |
|
|
Skid |
Ruby,Longitudinal radius 40mm |
|
|
Traversing speed |
lr=0.25, Vt=0.135mm/s |
|
|
lr=0.8, Vt=0. 5mm/s |
||
|
lr=2. 5, Vt=1mm/s |
||
|
Return Vt=1mm/s |
||
|
Accuracy |
Less than or equal to ±10% |
|
|
Repeatability |
Less than or equal to 6% |
|
|
Power supply |
Built-in Lithium ion battery,AC adapter 8.4V,800mA |
|
|
L×W×H |
119×47×65mm |
|
|
Mass |
approximately 380g |
|
Competitive Advantage:
- 15 parameters: Ra,Rq,Rz,Rt,Rp,Rv,RS,RSm,Rz(JIS),Ry(JIS) ,RSk,R3z,Rmax,RPc,Rmr；
- High accuracy inductance pickup;
- Four filtering methods of RC, PC-RC, GAUSS and D-P;
- Compatible with four standards of ISO, DIN, ANSI and JIS;
- Can store 15 sets of measurements results
- 128×64 dot matrix LCD displays all parameters and graphs;
- DSP chip is used to control and process data with high speed and low powerconsumption;
- Built-in lithium ion chargeable battery and control circuit have high capacity, without memory effect. Consecutive work time is longer than 20 hours;
- Design of mechanical and electrical integration is adopted to achieve small bulk, light weight and easy usage;
- Can be connected to TIME TA220s printer to print all parameters and graphs;
- Built-in standard RS232 interface enables communication with PC;
- Automatic switch off, memory and various prompt instructions;
- Optional printer, analysis software and measurement platform.
Standard Package:
|
Name |
Qty |
|
MR200 main unit |
1 |
|
Standard pickup |
1 |
|
Roughness specimen |
1 |
|
AC adapter |
1 |
