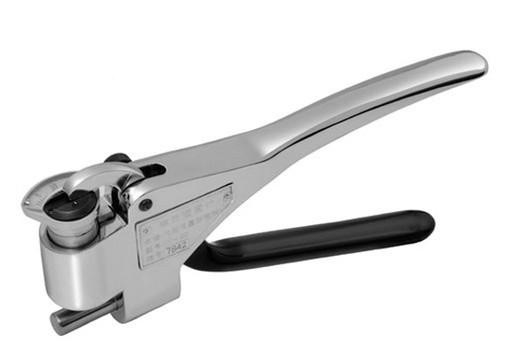

Economical Portable Hardness Tester for Aluminum Hardness Testing

Large Image : Economical Portable Hardness Tester for Aluminum Hardness Testing Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	MITECH
Model Number:	W-20

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export carton box
Delivery Time:	Goods in stock, could send out within three days
Payment Terms:	100% T/T, Paypal or Wester Union
Supply Ability:	500 sets/month

Contact Now

Detailed Product Description

High Light:

Hardness testing equipment

hardness test machine

Economical Portable Hardness Tester for Aluminum Hardness Testing

W-20 Aluminium Alloy Webster hardness tester

Description:

W-20,W-20A and W-20B are used to test aluminum profiles on the production site and application.

Applications:

A portable instrument which can perform on-site hardness test on soft metals in accordance with American Standard ASTM B647.

Used to check the result of heat treatment and determine if the mechanical performace of the workpiece is acceptable.

Suitable for testing the hardness of aluminium profiles, tubings,sheets and other shapes.

Used for testing the with long or heavy workpieces or assemblies inconvenient to be sent to the labs.

Ideal for qualification inspection on the production site.

Used to test aluminum profiles.

Specifications:

Measuring Scope: 0-20HW
Resolution: 0.5HW
Weight: 0.5kg

Model	Application Range	Hardness Range	Specimen Dimension(mm)
W-20	aluminum alloy	25~110HRE 58~131HRV	Thickness 0.4-6 Inner diameter>10
W-20a			Thickness 0.4-13 Inner diameter>10
W-20b			Thickness 0.4-8 Inner diameter>6
