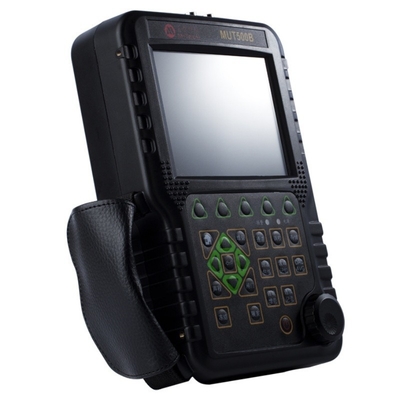

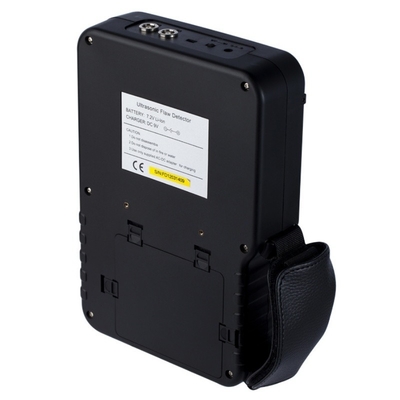

Description:

MFD500B Portable Ultrasonic Flaw Detector adopte the international advanced IC technique and new-style color TFT LCD display. Its each performance index all arrive or even beyond international excellence. The instrument use the artificial intelligence technology. It has very strong function and can be used very convenient. MFD500B can test, orient, evaluate and diagnose various flaws such as crack, lard, air hole in worklpiece’s interior swiftly and accurately without any destruction. It can not only be used in lab but also can be used on engineering site. Also, it can be widely used for safety checking and life evaluating in fields of aeronautics, rail transportation and boiler pressure vessel.

Applications:

Peak Hold:Automatically searching the peak wave inside the gate and hold it on the display.

Equivalent diameter calculation: find out the peak echo and calculate its equivalent diameter.

Continuous Record: Record the display continuously and save it to the memory inside the instrument.

Defect Localization: Localize the defect position, including the distance, the depth and its plane projection distance.

Defect Sizing: calculate the defect size

Defect Evaluation: Evaluate the defect by echo envelope.

DAC: Distance Amplitude Correction

AVG: Distance Gain Size curve function

Crack measure: Measure and calculate the crack depth

B-SCAN: Display the cross-section of the test block.

Specifications:

• Range: (0 ~ 9999) mm
• Bandwidth: (0.5 ~ 15) MHz
• Material Velocity: (1000 ~ 9999) m / s
• Dynamic Range: ≥ 32dB
• Vertical linear error: ≤ 3%
• Horizontal linear error: ≤ 0.2%
• Resolution:> 40dB (5P14)
• Sensitivity Leavings: 60dB (flat-bottomed deep hole 200mmФ2)
• Rejection: (0 to 80)% Linear
• Noise level: ≤ 10%
• Power supply: DC 9V; lithium batteries work for 10hours or more
• Ambient temperature: (-20 ~ 50) ℃
• Relative Humidity: (20 ~ 95)% RH
• Overall dimensions: 263 × 170 × 61 (mm)

Competitive Advantage:

● With English display, master-slave menu, shortcut key and digital swiftly knob, it’s designed with leading technology and can be used very conveniently.

● With digital color TFT LCD display, it can choose the background colour and wave color acoording to the environment. And the LCD brightness also can be set freely by yourself.

● Designed with high performance security-guarantee battery module, it’s easy for disassembly and assembly. And it can charge independent with offline. And the large capacity and high performance Lithium-ion battery module make the instrument’ continously working time to above 8 hours,

● With small size and light weight, the instrument can be hold by one hand. It’s durable in use and lead industry trend.
