LCD Display Hydraulic Pressure Testing Machine, Brick, Stone Cement Strength Tester MEW-Y2000S
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | Impact testing machine,Torsion testing machine |
||
|---|---|---|---|

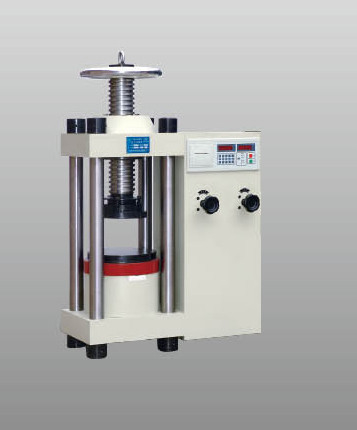

LCD Display Hydraulic Pressure Testing Machine, Brick, Stone Cement Strength Tester MEW-Y2000S
MEW-Y2000S LCD display pressure testing machine
Description:
This testing machine is mainly used for the strength tests of materials like brick, stone, cement, concrete and other building materials. It is in line with GB/T50081-2002 standard, and is able to be used in mechanical tests of other materials.
This machine uses hydraulic loading. It has the functions of e- measurement of force, digit display of load, acceleration display, maximum load retention, and overload protection, as well as power-off data retention.
Specifications:
|
Max. test force |
2000kN |
|
Range and measuring range |
4%-100%FS |
|
relative error of displayed values |
≤±1% |
|
size of upper and lower plates |
Φ225mm,Φ300mm |
|
maximum distance between the upper and lower plates |
320mm |
|
Piston stroke |
30mm |
|
Piston diameter |
Φ250mm |
|
rated pressure of the hydraulic pump |
40MPa |
|
Power supply and power |
three-phase 0.75kW |
|
Overall dimension |
800×500×1200mm |
|
Net weight |
Approx. 750Kg |
|
Note: This parameter list is only for information and is subject to change without notice. The real objects prevail for the products of our company. |
|
