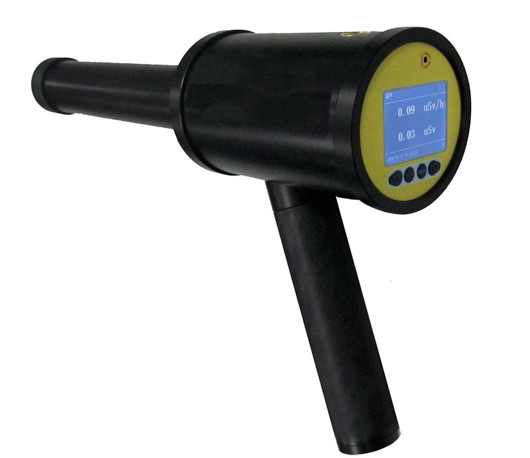

MRT2000 NDT Tester intelligent x-ray gamma-ray dosimeter blue tooth transfer
Overview:
MRT2000 intelligent x-ray, gammy-ray dosimeter use high sensitivity scintillation crystal as a detector,
fast response, is used to monitor a variety of high energy x-ray, gammy ray, low energy x-ray,
gammy-ray in the workplace. It is special instrument for radiation dose rate. This instrument use
colorful LCD screen as the display screen, with adjustable function of backlight brightness. It has alarm function when the dose is over the set one. The alarm value can be set freely in the measuring scope.
It also has record function of the timing measurement, it has inquiry function of alarm record .
Main applications:
MRT2000 intelligent x-ray, gammy-ray dosimeter is widely used in medical, disease control, environment protection, metallurgy, petroleum, chemical, radiological laboratory, industrial radiography, radiation processing, mining and occasion where NDT testing.
Features:
High sensitivity,. High-speed low-power microprocessor unit.
Chinese and English operation interface, easy to operate.
Color LCD display, backlight brightness adjustable.
Both dose rates and cumulative dose can be measured.
Dose rate / cumulative dose over the threshold alarms, timing measurement logging.
Battery voltage, dose rate overload detector fault alarm.
Battery real-time display.
Dose rate / cumulative dose alarm record query.
Aluminum alloy shell, adapt field operations.
Optional door interlock function can be used as an electronic key access.
Optional intelligent networking capabilities, data export functions.
Detectors |
φ30×25mm flash crystal |
Measuring scope |
Dose Rate :0.01~200.00µSv/h;Cumulative dose:0.00µSv~9.99Sv |
Sensitivity: |
≥350CPS/ μSv/h |
Energy range: |
38Kev~3Mev |
Relative error: |
≤±8%(when 200.00µSv/h) |
Measuring time: |
5~120s , which can be set |
Alarm threshold: |
Cumulative dose and dose rate can be set freely. |
Measuring way |
Real measuring and timing measuring |
Display unit |
Equivalent dose rate µSv/h, Absorbed dose rate µGy/h,Cumulative dose μSv,CPS count rate |
Power supply |
No.1 battery:2 |
Power supply |
Host power supply Consumption≤200mW( not contain display consumption )
|
Weight |
1.30Kg(battery) |
Size: |
420*180*88(mm) |
